NASA Mars Relief

Usage

You access the global MOLA relief grid by specifying the special name

@mars_relief[_rru[_reg]]

This grid contains observed relief measured via altimetry. The following codes for the optional rru and reg are supported (dimensions are listed for pixel-registered grids; gridline-registered grids increment dimensions by one):

Code	Dimensions	Reg	Size	Description
01d	360 x 180	g,p	109 KB	1 arc degree Mars relief (MOLA @ 168 km)
30m	720 x 360	g,p	373 KB	30 arc minute Mars relief (MOLA @ 84 km)
20m	1080 x 540	g,p	781 KB	20 arc minute Mars relief (MOLA @ 56 km)
15m	1440 x 720	g,p	1.3 MB	15 arc minute Mars relief (MOLA @ 42 km)
10m	2160 x 1080	g,p	2.8 MB	10 arc minute Mars relief (MOLA @ 28 km)
06m	3600 x 1800	g,p	7.5 MB	6 arc minute Mars relief (MOLA @ 17 km)
05m	4320 x 2160	g,p	11 MB	5 arc minute Mars relief (MOLA @ 16 km)
04m	5400 x 2700	g,p	16 MB	4 arc minute Mars relief (MOLA @ 11 km)
03m	7200 x 3600	g,p	28 MB	3 arc minute Mars relief (MOLA @ 8.4 km)
02m	10800 x 5400	g,p	61 MB	2 arc minute Mars relief (MOLA @ 5.6 km)
01m	21600 x 10800	g,p	228 MB	1 arc minute Mars relief (MOLA @ 2.8 km)
30s	43200 x 21600	g,p	822 MB	30 arc second Mars relief (MOLA @ 1.4 km)
15s	86400 x 43200	g,p	2.7 GB	15 arc second Mars relief (MOLA @ 0.7 km)
12s	106694 x 53347	p	3.1 GB	12.14… arc second Mars relief (MOLA original)

Note that resolutions 05m and higher are tiled. See Remote Datasets for more information.

See GMT remote dataset usage for when resolution codes are optional or required. All of these data will, when downloaded, be placed in your ~/.gmt/server directory, with the mars_relief files being placed in an mars/mars_relief sub-directory. If you do not specify a CPT then the default CPT for this dataset (the GMT master @mars_relief.cpt CPT) will be used.

Examples

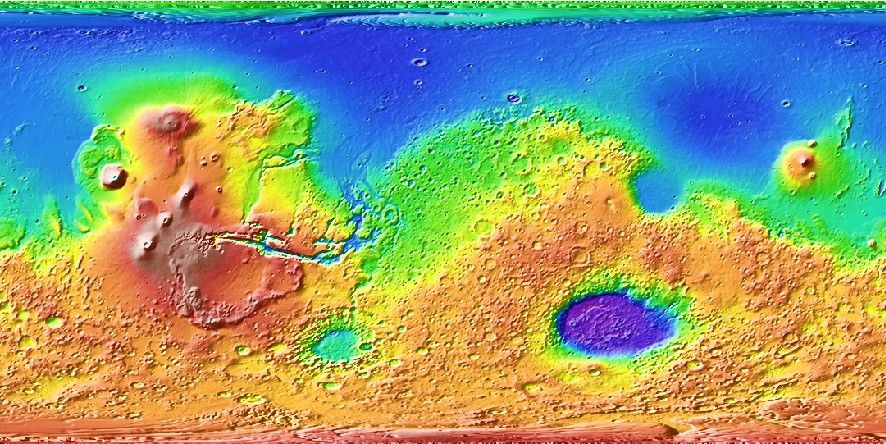

To create a PDF map of the Mars MOLA relief at 1 arc degree resolution, try:

gmt grdimage @mars_relief_01d -Baf -pdf mars_relief

Technical Information

As you see, the 01m and lower resolutions are all derivatives of USGS’ 12.1468873601 arc-second Mars_HRSC_MOLA_BlendDEM_Global_200mp_v2.tif (Neumann_et_al., 2003). We have downsampled it via Cartesian Gaussian filtering to prevent aliasing while preserving the latitude-dependent resolution in the original 12.1468873601 arc sec grid. The full (6 sigma) filter-widths are indicated in parenthesis. Almost all grids are available in both gridline- and pixel-registered formats except the original pixel-registered grid at 12.1468873601 arc-seconds resolution (here called @mars_relief_12s).

We also scale and reformat the original data to take up very little space so that downloads from the servers are as fast as possible. For the mars_relief grids this means we chose 0.5 meter as the grid z step, which is well below the uncertainties in the data. Elevations are scaled and shifted to fit in a short integer grid that is highly compressed by netCDF lossless compression and chunking.

Note: Because of this quantization, these grids should be used with care in morphometric studies (e.g., slope, curvature or roughness analyses), since even sub-meter rounding can bias slope and aspect calculations [Carter, 1992]. We suggest using the original dataset instead for such applications.

Data References

1. Carter, J.R., 1992: [https://doi.org/10.3138/aj35-34h3-524k-0685].

2. MOLA: [https://doi.org/10.1029/2000JE001426].
